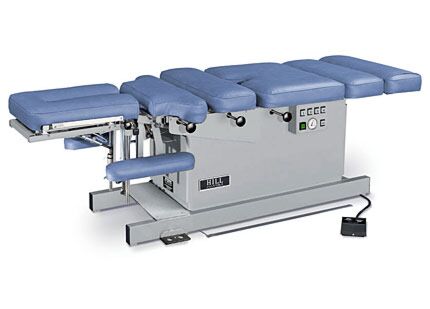

If you have used a manual drop table for any length of time, then you’ll appreciate the impressive speed and ease of treating with the Air-Drop HA90C. Equipped with the Hill Air-Drop System, the HA90C allows doctors to select one or up to four drops simultaneously from the convenient, side-mounted, control panel. Once a section has been dropped, it is instantly reset with the simple touch of a foot pedal.

All of the pneumatic components on the Air-Drop HA90C are supplied by a large air-storage tank and mini-compressor which are neatly enclosed within the table’s base skirting. The compressor runs quietly and only periodically (approximately 1 minute) to replenish the air-tank.

The table features a Thoracic Air-Breakaway Section controlled by a foot pedal. The pedal increases or decreases the air-spring pressure in the thoracic and lumbar sections providing a controlled recoil action. It can also be locked in any position down to 51/2” for treating patients with a large abdominal region.

The drops included on the Air-Drop HA90C are Cervical, Thoracic, Lumbar, and Pelvic. The Cervical Drop has dual action enabling either straight or forward-drop action. All drops are controlled by the included foot-strips located on both sides of the table.

Like all Hill Adjustables, the Air-Drop HA90C has electric adjustable-height. Height is adjusted with a rocker foot pedal that is mounted to the base and can be accessed from either side of the table. An operating range from 23 1/2” to 33” or 21 1/2" to 31" allows the doctor to work at a comfortable treatment level.

Base Air-Drop HA90C Standard Features

Height controlled by Rocker Foot Pedal
Height Range from 21 1/2" to 31"
(Higher starting heights also available)
Width 24", Length 6'3"
Armrests, 13" Face cut-out, Paper Roll, Cutter
Tilting Headpiece, 30° Positive and Negative Tilt
Air-Powered Thoracic Spring Breakaway
Air Cervical Dual Drop Headpiece
(Straight Down and Forward Motion)
Air Thoracic Drop
Air Lumbar Drop
Air Pelvic Drop
Power Foot-Strips (trigger drops)
Drop-Away Foot Section
Choice of 20 vinyl colors for the top
Beige, Grey or Black base with acrylic thermo-plastic cover
One-year warranty on all parts (Dealer on-site labor warranty may vary)

Options

Head Section

AD301 Raised Headpiece
AD302 CBP Headpiece (requires #AD301)
F22 Flexion Headpiece (requires #AD301)

Thoracic / Lumbar / Pelvic Section

AD303 Raised Pelvic Section

Foot Section

87A Slide-Out & Raised Ankle

Foot and Hand Controls

AD305 Extra Control Box
92 Extra Foot Pedal with 4'6" cord
92B Auto-Touch Foot Pedal
92D Toggle Height Switch
93 Caster System for mobility
220 Volt International Power Supply
